Overview

Space Communication Access Control and Time-Attendance door controllers are the brain of the system which allows only authorized users in the premises and registers their entry and exit time. These door controllers are available in various models with advanced connectivity and interface options to tackle present and future access control and time-attendance needs of any type of the businesses.

Elegant Design

• Award Winning Design
• 128x64 LCD Display and Touch Sense Keypad
• Pluggable Card Reader Module
• Audio Visual Indications



Fast and Accurate Fingerprint Identification

• Identification in less than 1 Second
• 1:1 and 1:N Verification



Better Storage Capacity

• 50,000 Events Storage
• 9600 Fingerprint Templates



Versatile Reader

• Fingerprint, RFID Card Reader and PIN
• Optical Fingerprint Reader
• Proximity and Smart Card Reader
• EM Prox, HID Prox, Mifare and HID iCLASS



Easy Operation and Installation

• User Friendly, Fast and Easy Operations
• Standalone and Network Operation
• Easy Mounting on a Back Plate
• Leverage Existing Network Infrastructure
• Minimum Wiring



Enhanced Connectivity Options

• Wired or Wireless Connectivity
• Ethernet and RS-485
• Wi-Fi, 3G, 2G, GPRS, UMTS and USB



Various Interfaces

• Door Relay and Door Sense
• Auxiliary Input and Output Port
• Exit Reader and Exit Switch



Applications

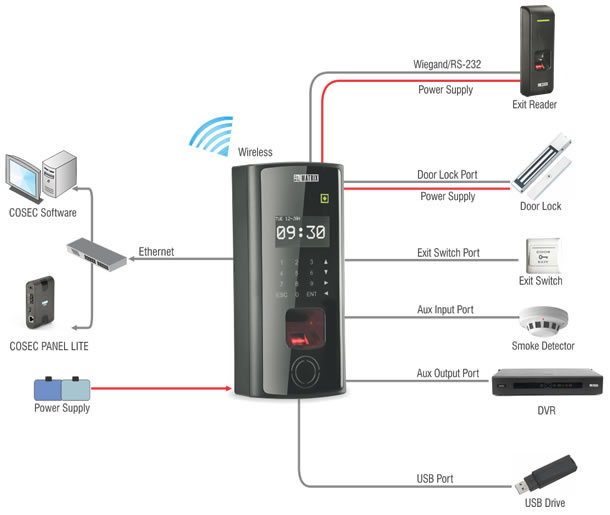

Interface Diagram

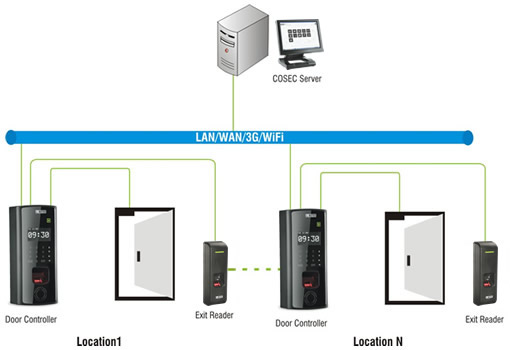

Network Application

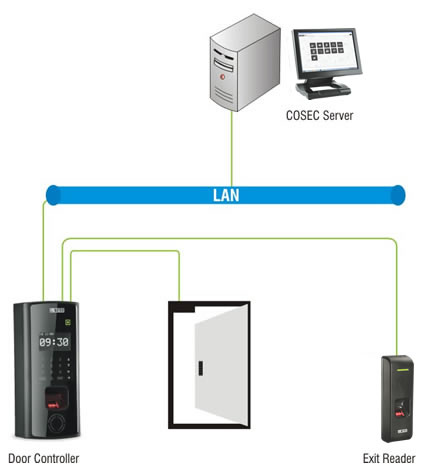

Stand-alone

Technical Specifications

Credentials	DOOR CAP	DOOR FOP	DOOR CAW	DOOR FOW
	Card and PIN	Card, Fingerprint & PIN	Card & PIN	Card, Fingerprint & PIN
Fingerprint Module	NA	Optical	NA	Optical
Finger Templates	NA	9600	NA	9600
LCD (128x64 Dot-Matrix)	Yes
Touch Sense Keys (16)	Yes
USB	Yes
Communication	Ethernet and RS485		Ethernet, Wi-Fi and 3G
Events Buffer	50,000		5,00,000
Communication Speed	10/100Mbps on Ethernet and 115.2 Kbps on RS485
External Reader	1 Port for Card or Fingerprint Reader
External Reader Interfaces	RS232 and Wiegand
External Reader Power	[email protected]
Exit Switch Port	Yes
Door Status Sense	Programmable NO, NC, Supervised
Door Lock Relay	Relay SPDT, Form C, 1A@30VDC
Door Lock Power	[email protected] or External
Auxiliary Input Port	Programmable NO, NC, Supervised
Auxiliary Output Relay	Relay SPDT, Form C, 1A@30VDC
Tamper Detection	Yes
Buzzer	Yes
Indications	4 LEDs (Status, Alarm, Allowed and Denied)
CPU	32 Bit RISC
Memory	512KB Rom and 128KB RAM
Input Power	12 VDC@1A
Dimensions (WхHхD)	100×220×55mm (3.9"х8.7"х2.2")
Weight	0.46Kg (1.00Lbs)		0.49Kg (1.07Lbs)
Environment	0° C to +50°C (32°F to 122°F), 5% to 95% RH Non-Condensing
